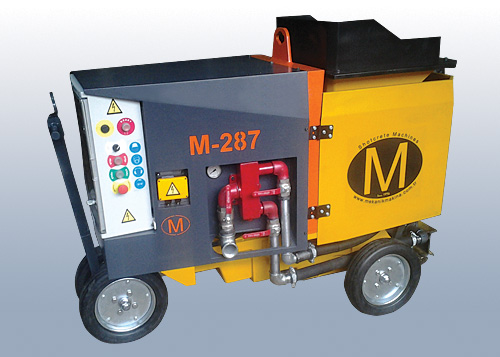

M-287 Enclosed Design Shotcrete Machine

Applications

Designed for wet and dry system shotcrete and concrete speed spraying.

Concrete speed spraying reduces costs by minimizing labour, compressor fuel consumption, and the use of consumables.

Features

  • Newly developed special enclosure design for occupational health and safety
  • Two speed driver motor allows custom spraying techniques
  • Optional voice communication with wireless remote control system for turning on and off nozzle tip
  • Electrical protection system in case of motor overload
  • Torque wrench used at four points for even tightening on tension rod system
  • Skid mounted or wheeled options.

Technical Specifications

Model M-287 Enclosed Shotcrete Spraying Machine Also Available
Rotary Capacity 18.5 litres M-260 Concrete Spraying Machine
Concrete Transfer Capacity 4 - 10 m3/h M-260/1 Rotary Capacity 21 litres
Shooting Air Pressure 5 - 9 bar M-260/2 Rotary Capacity 13 litres
Shooting Air Capacity 15 / 21 m3/min
Concrete Transfer Hose 2 1/2"
Wet Mix Range Horizontal 40 meters
  Vertical 30 meters M-252 Shotcrete Spraying Machine
Dry Mix Range Horizontal 300 meters M-252/1 Rotary Capacity 6 litres
  Vertical 100 meters M-252/2 Rotary Capacity 7 litres
Aggregate Measure 5 - 21 mm
Grease Pump Automatic
Driver Motor 8.7 kW - 1500 RPM
  5.7 kW - 1000 RPM M-800/M-500 Cement/Sand Supply Bin
  480V/60Hz M-500 Concrete Capacity 5 m3
  600V/60Hz M-800 Concrete Capacity 8 m3
Vibration Motor 0.17 kW
Remote Control Optional
Weight 1500 Kg

Model M-287 Wet and Dry Shotcrete Spray Machine
