Co-Pak™ "Ready to Use" Grout Plant

Applications

ConMico's Series 1500 heavy duty, skid mounted grout plants, are available in two versions:

  • High capacity with high speed colloidal mixer and 400 litre agitator with heavy-duty all steel positive displacement plunger pump.
  • Versatile, economical double drum mixer with heavy-duty all steel positive displacement plunger pump.

The Co-Pak™ Series 1500 incorporates both the mixer and pump equipment assemblies necessary to provide a continuous supply of grout, cement slurries and epoxies, without variation in material homogeneity.

The compact design of the unit allows it to be placed in close proximity to the workface for maximum control and productivity. The system is available powered in the very popular pneumatic version, electric hydraulic, or the very portable diesel-hydraulic.

Features

  • Quick disconnect fittings throughout
  • Double-Tank paddle mixer
  • Hardened valve seats for long life
  • Easy field maintenance
  • Dynamic pressure adjustment range
  • Non-plugging, flush clean with water
  • Constant pressure regulator
  • Forklift chases and lift lugs available

Technical Specifications

  Model No. Pnuematic-Hydraulic Electro-Hydraulic
Capacity 1500-MD 121 8 GPM @ 2000 psi
30.2 LPM @ 138 bar
NA
  1500-MD 122 16 GPM @ 1000 psi
60.4 LPM @ 69 ba
NA
  1500-MD 141 NA 8 GPM @ 2000 psi
30.2 LPM @ 138 bar
  1500-MD 142 NA 16 GPM @ 1000 psi
60.4 LPM @ 69 bar
Dimensions Size will vary - approximate dimensions: 98" x 63" x 67"
(2489 mm x 1600 mm x 1702 mm)
Shipping Wt 600 lbs (273 kg) - ships LTL (skidded)
Fittings Choice of SAE or metric (specify) - 1" output supplied as standard
Performance Rated to available air, mix and line diameter
Operation In-line protected pressure gauge, demand feed from nozzle shut-off

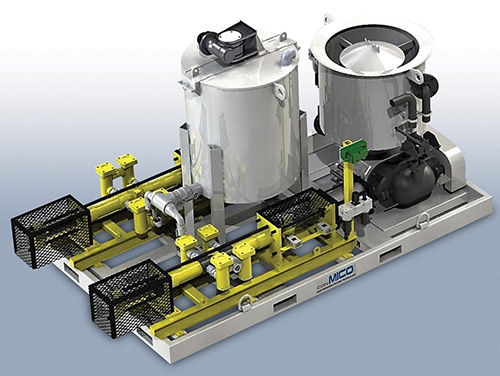

Co-Pak™ system with high speed colloidal mixer and pumps.

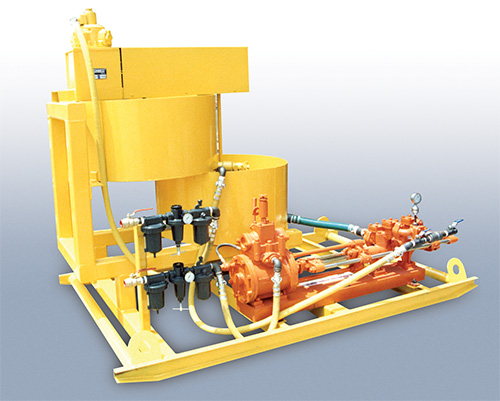

Co-Pak™ system with versatile double drum mixer.
