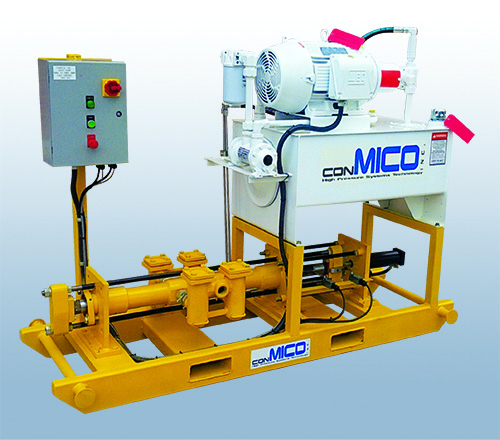

Electro-Hydraulic Cement Injection Pump

All Steel Construction

The Series 2500H heavy-duty skid design and construction have been engineered and crafted to provide years of productive operation, and can be field maintained with ease — all steel construction provides superior strength, durability and reduced maintenance costs compared to cast iron and aluminum pumps.

Applications

These self-powered, double-acting pumps are an ideal solution for applications requiring high volume, continuous pressure pumping of grouts, cement slurries or epoxies. Driven by a reliable 20 HP electro-hydraulic power plant, the opposing twin cylinders provide a smooth even flow of material at consistent pressure.

This unit features a ConMICO exclusive — a self-contained, pilot driven manifold system that drives the reciprocating double acting pump cylinders. The completely sealed control system is protected against failure from cement spillage and accidental impact.

The twin valve chambers feature quick change Super Stako fittings for ease of cleaning and seat replacement.

Features

  • Standard SAE fittings throughout
  • Adaptable to any mixing tank feeder
  • Hardened valve seats for long life
  • Quick clean, easy field maintenance
  • Smooth operating, reciprocating hydraulic
    pilot valve manifold
  • Dynamic pressure adjustment range
  • Non-plugging-flush clean with water
  • Constant pressure regulator
  • Integral heat exchanger ensures constant
    hydraulic oil temperature and pressure
  • adaptable to all electrical supplies

Technical Specifications

  Model 2500H-14 Model 2500H-15 Model 2500H-16 Model 2500H-X
Capacity 22 GPM @ 1000 psi
83 LPM @ 69 bar
16 GPM @ 1600 psi
60 LPM @ 110 bar
10 GPM @ 2000 psi
38 LPM @ 138 bar
5 GPM @ 4000 psi
19 LPM @ 2760 bar
Dimensions 90” x 36” x 48” (2286 mm x 914 mm x 1219 mm)
Shipping Weight 450 lbs (205 kg) — ships LTL skidded
Fittings Choice of SAE or metric (specify) — 1" output supplied as standard
Performance Production rates quoted for electro-hydraulic model rated to mix and line diameter
Operation In-line protected pressure gauge, demand feed from nozzle shut-off

This unit is available in either stand-alone systems or incorporated into a dedicated grouting plant.
