Grout Injection Pump

Applications

The ConMICO 2500W series is lightweight, readily portable and robustly constructed. In combination with one of our 2500M mixers it is mainly used for full-column grouting for cable anchoring and for spraying materials.

Combining the air-motor with different riser-tube assemblies (fluid sections) adapts the pump to suit any particular need — see "Pumping Capacity" table below.

Features

All the pumps are equipped with a VTO lubricator/filter to ensure clean lubricating air operates the pump. The riser-tube is fitted with a clamp and allows removal of the tube for cleaning without the need of special tools.

Pumps are configured with hoses and fittings to suit each application and can handle a variety of mixes, from a thin liquid to a viscous grout (1:3 water to cement).

Other models can be manufactured to meet special needs (eg. coal mining).

Technical Specifications

Mechanical Pumping Capacity
Height 1 m (3.3 ft) Thick, Viscous Material 9 (2.4)
Weight 20 kg (44 lbs) Thin, Watery Material 30 (7.8)
Riser Tube Length 580 mm (23 in) Min Air Requirements 420 kpa (60 psi)
Riser Tube Options 320 mm (12.6 in) Delivery Pressure (x line pressure) 7.1
Riser Tube Diameter 51 mm (2 in) Air Consumption 0.06 m3 (12 CFM)
Stroke Length 80 mm (3 in) Horizontal Pumping Distance 90 m (300 ft)
Strokes per Minute (5 bar/90 psi) 180 Max Vertical Pumping Distance 14 m (46 ft)
Swept Volume 163 ml (in3) Aggregated Size - Max 6 1/4 6 mm (0.25 in)

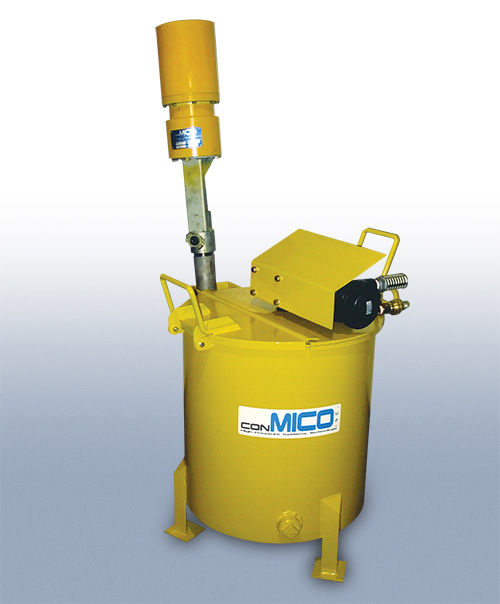

ConMICO 2500W —lightweight, readily portable, robust mixer for full-column grouting.
