Series 2500 Pneumatic Cement Injection Pump

All Steel Construction

This pump embodies the traditional design style of a high pressure grout and cement slurry pump — its all steel construction provides superior strength, durability and reduced maintenance costs compared to cast iron and aluminum pumps.

The heavy-duty design and construction of ConMico's injection pumps are engineered and crafted to provide years of productive operation and can be field maintained with ease.

Applications

This versatile steel double acting pump is an ideal solution for applications requiring continuous high pressure — it provides greater throughputs at proportionately higher pressures — all with lower energy requirements. The opposing cylinders provide an even flow of material at a consistent high pressure.

The unit includes a hydraulic end specifically built for easy cleaning and maintenance with the application of SUPER STAKO STAPLE joints.

Features

  • Quick disconnect fittings throughout
  • Adaptable to any mixing tank feeder
  • Hardened valve seats for long life
  • Easy field maintenance
  • Dynamic pressure adjustment range
  • Non-plugging, flush clean with water
  • Constant pressure regulator
  • Adapts to all delivery systems
  • Choice of pneumatic or electric power

Technical Specifications

  Model 2500-PCS-11 Model 2500-PCS-12 Model 2500-PCS-13
Capacity 8 GPM @ 2000 psi
30 LPM @ 138 bar
20 GPM @ 1000 psi
60 LPM @ 69 bar
20 GPM @ 2000 psi
60 LPM @ 138 bar
Dimensions 68.25" x 21.75" x 27.5" (1730 mm x 550 mm x 700 mm)
Shipping Weight 400 lbs (136 kg) — ships LTL skidded
Fittings Choice of SAE or metric (specify) — 1" output supplied as standard
Performance Rated to available air, mix and line diameter
Operation In-line protected pressure gauge, demand feed from nozzle shut-off

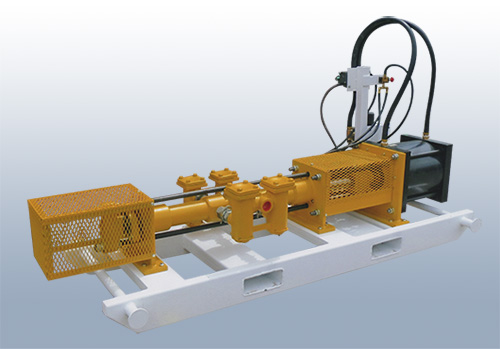

Model 2500 Pneumatic Cement Injection Pump — available as a stand-alone system or incorporated into a dedicated grouting plant.
