Spot Location Grout Injection Pump

Applications

ConMico's Series 2500W spot location injector system is a fully operational “grout plant” embodied in a compact and highly portable design — the perfect solution to any mining, construction repair, or anchor bolt application calling for a low volume, portable injector system.

It was created to satisfy the need for a high pressure injection system capable of being moved into small cramped quarters.

Weighing only 20 kg (empty), the 2500W is a simple “bucket and sump” design, easily carried by just one man, and offers a quick cost effective solution requiring only a standard oiled or non-oiled air source meeting a minimum of 25 cfm (.014 m3/sec) to provide a continuous feed of grout or epoxy material.

Its simple, but rugged construction requires a minimum of maintenance and has been designed for easy field replacement of parts and seals, if required, using off-the-shelf-components.

Features

  • Quick disconnect fittings throughout
  • Adaptable to any mix viscosity
  • Built to withstand rough handling
  • Easy field maintenance
  • One-valve operation
  • Non-plugging — flush clean with water
  • Self clearing mixer — uniform mix consistency
  • Adapts to all nozzle delivery systems

Technical Specifications

Capacity 4 GPM, 710 psi Max (15 LPM, 49 bar Max)
Dimensions 30 in x 30 in x 36in (762 mm x 762 mm x 914 mm)
Shipping Weight 75 lbs ships LTL — crated (34 k)
Fittings Choice of SAE or metric (specify) — 1" output standard
Performance Rated to available air, mix and line diameter
Operation Does not require air — oil lubrication, automatic air dump valve system

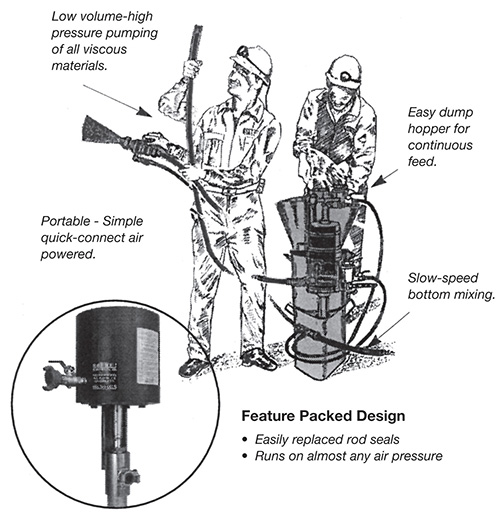

ConMICO 2500W spot location grout injection pump - illustrating ease of use in tight or awkward spaces.
